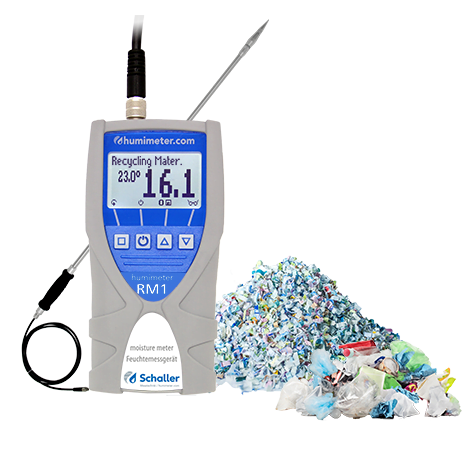

humimeter RM1 Recycled material moisture meter

View all corresponding sensors View all corresponding accessories

Material

Evaluation device for wood chip probe

Hold function
For a variety of materials
Automatic temperature compensation
Large illuminated LC display
Fast determination of the average moisture
Lifetime support
Scope of delivery: humimeter RM1 with rubber protection case and batteries - please select external sensor

Article number: 13335

$1,229.00 excl. taxes

Available

Sensors (required)

Accessories (optional)

Description

The humimeter RM1 Recycled Material Hygrometer is a hand held moisture meter for measuring the moisture of biomass such as woodchips, waste wood shavings, sawdust, waste plastic (plastic waste), general waste, paper, cardboard, waste paper, waste paper, corrugated kraft, shredded paper, high cellulose recycled material, kraftliner or kraft board, waste and many other materials.

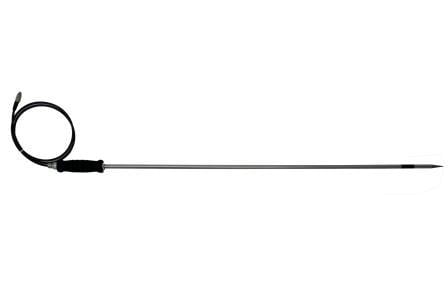

The piercing lance is one meter long. The long lance makes it possible to measure the recyclables even in deeper layers. This makes it possible to measure a good average of large quantities of recyclable materials and waste in a short time. The robust design and the constantly developed measuring electronics guarantee high measuring accuracy for a long period of use.

The main users of the measuring device are waste incineration systems (waste to energy), recyclables collecion points, waste disposal companies, etc.

A common application is to provide waste with the correct water content for incineration. With the help of humimeters RM1, dry and wet material can be mixed so that the incinerator can operate at optimal efficiency.

Determining moisture using the drying method is very time-consuming and not very meaningful due to the small sample size. Using the RM1, it is possible to quickly determine the average moisture value of large amounts of waste.

Advantages

Moisture meter suitable for home inspection
For a variety of materials
Very easy to use
Measurement within seconds
Fast determination of the average moisture
Lifetime support

Technical Data

Measuring range	10 to 50 % water content (depending on product type)
Resolution	0.5 % water content
Operating temperature	0 to +40 °C \| 32 to 104 °F
Memory function	Hold function, datalog for 10,000 logs with measuring point report
Temperature compensation	Automatically
Dimensions	147 x 75 x 30 mm \| 5.79 x 2.95 x 1.18 in
Weight	270 g \| 0.6 lbs (with batteries)
Power Supply	4 x 1.5 Volt AA Alkaline batteries
Menu languages	English, German, French, Italian, Spanish, Russian, Portuguese, Czech, Polish and International

Additional Notes

Martin Kostanjšek

Sales

Do you have any questions about our products? I would be happy to advise you personally!

Contact

Handling and measuring process

After switching on the device and selecting the appropriate calibration curve (depending on the type of waste), the probe can be inserted into the recycling pile. The measurement is taken at the tip of the lance – so it is possible to measure at different depths of the pile.

The display of humimeter RM1 moisture meter immediately displays the water content and temperature. The average water content can be determined quickly and easily by taking various measurements in different areas of the pile.
The measured values can be saved on the device and further information such as the batch number can be added. The average value of the measurements can be shown on the display.
The measured values can be transferred to a PC via the optional USB interface, and the data can be archived, exported, further processed or printed using the LogMemorizer ® PC software.
