humimeter RH6 Paper moisture meter

View all corresponding accessories

Paper

Paper moisture tester for paper stacks

Hold function, manual data storage
Vendor storage management
Programmable customer characteristics
Lifetime support
Scope of delivery: humimeter RH6 with rubber protection cover, humimeter USB data interface module with LogMemorizer software incl. USB cable, wooden case and batteries

Article number: 11497

$1,989.00 excl. taxes

Available

Accessories (optional)

Certified calibration ampoules

$149.00 excl. taxes

Certified calibration ampoules

$149.00 excl. taxes

Factory calibration certificate humidity

$152.00 excl. taxes

Calibration including adjustment

$188.00 excl. taxes

excl. taxes

Description

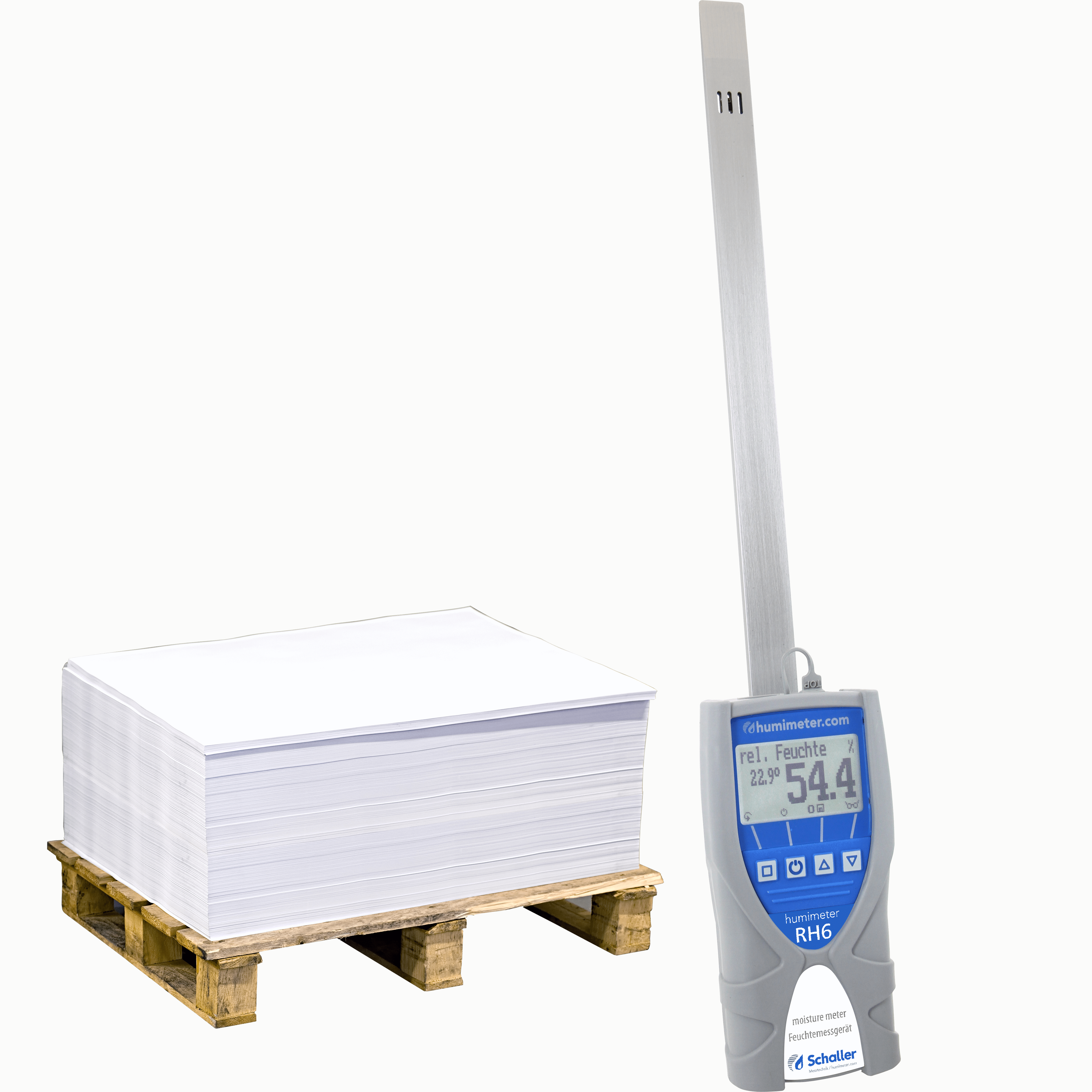

humimeter paper hygrometer with sword sensor for water content determination in the paper pile.

Advantages

Temperature-compensated paper and wood equilibrium moisture content, characteristics for water content determination
Very fast adjustment behavior
Easy data storage on the portable moisture meter
A new, revolutionary, high-performance series of handheld measuring devices for moisture measurement with innovative sensor technologies
Optimal documentation of your quality

Technical Data

Relative humidity	0 to 100 %, resolution 0.1 % RH
Calibration	10 to 90 % +/- 1.5 % RH (at 25 °C \| 77 °F)
Temperature	-10 to +60 °C \| 14 to 140 °F, resolution 0.1 °C (32.18 °F)
Calibration	+/- 0.3 °C (at 25 °C) \| 32.54 °F (at 77 °F)
Dew point	-55 to +60 °C \| -67 to 140 °F, resolution 0.1 °C (32.18 °F)
Absolute humidity	0 to 130 g/m³, resolution 0.1 g/m³
Compensation	Temperature-compensated paper and wood equilibrium moisture content
Memory function	Hold function, manual value added storage
Automatic datalog	For 10,000 logs with measuring point report
Dimensions	441 x 74 x 33 mm \| 17.6 x 2.91 x 1.3 in
Sword sensor length	295 mm \| 11.61 in
Weight	310 g \| 0.68 lbs (with batteries)
Weight including wooden case	1 kg \| 2.2 lbs
Power supply	4 x 1.5 Volt AA Alkaline batteries
Menu languages	English, German, French, Italian, Spanish, Russian, Portuguese, Czech, Polish and International

Additional Notes

Martin Maunz

Sales

Do you have any questions about our products? I would be happy to advise you personally!

Contact

Handling and measuring process

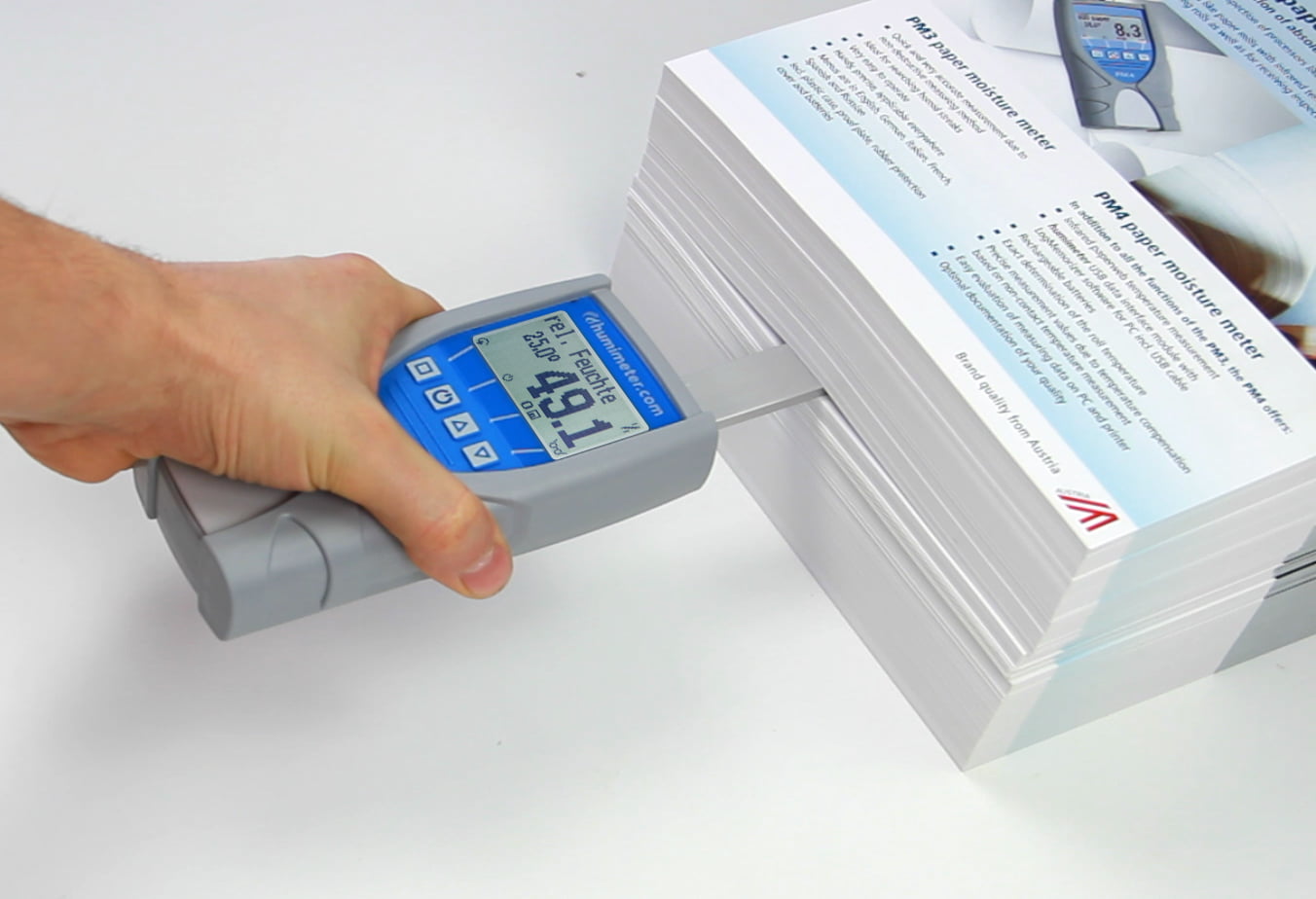

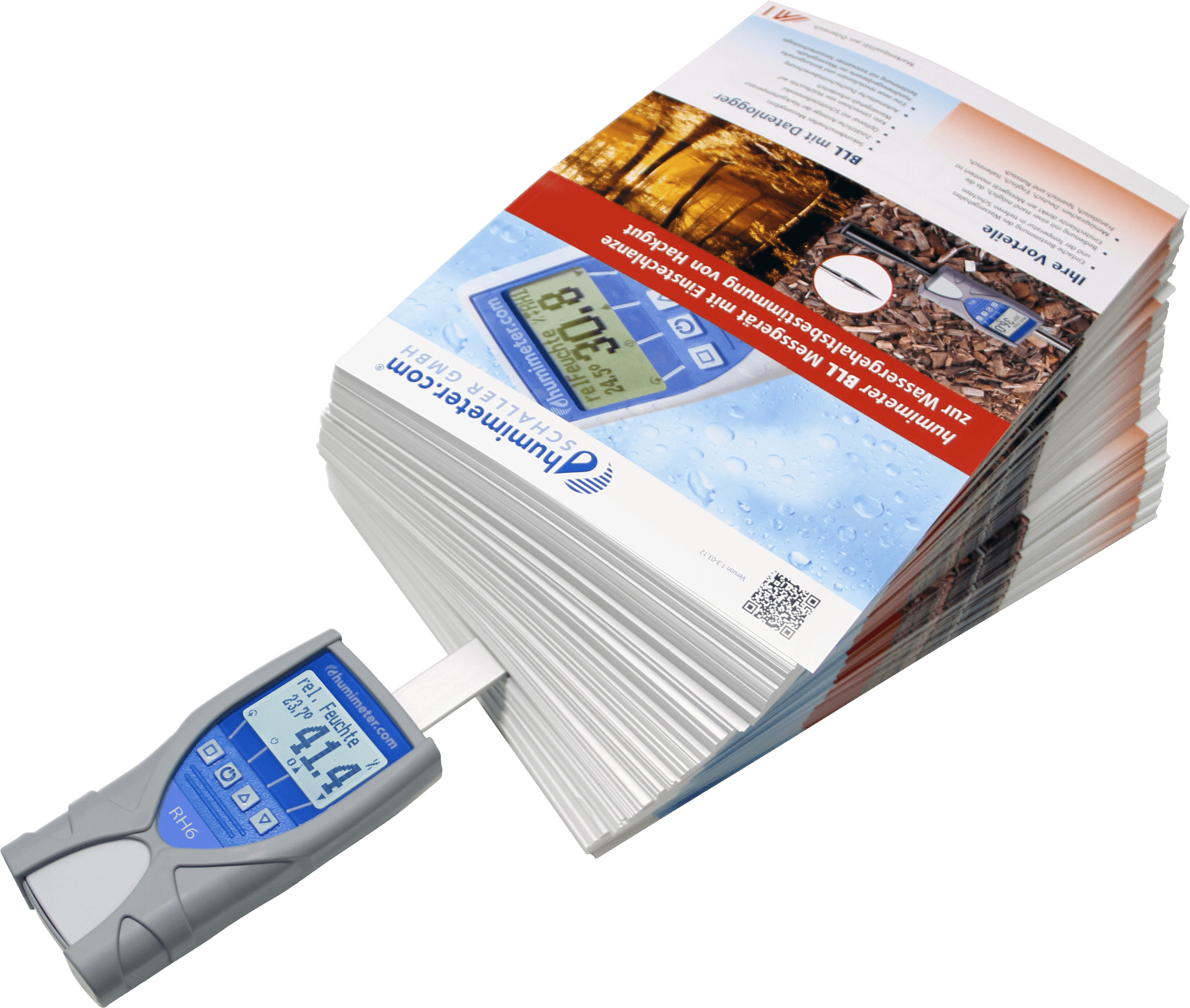

The humimeter RH6 paper hygrometer is a powerful moisture meter with sword probe(see image) for moisture determination in paper piles. To measure the moisture content of a paper pile, simply insert the humimeter RH6 paper hygrometer into the pile and leave it there for a short adjustment time.
The measured values on the humimeter RH6 paper hygrometer can also be stored via the data logger, provided with additional data and retrieved later. You also have the option of using the auto data logger to have the measured paper moisture values saved automatically at adjustable time intervals.

In order not to damage the sword with heavy paper stacks, the sword sleeve and the sword sleeve extractor are available as assessories. The sword sleeve is driven into the paper pile and the humimeter RH6 paper hygrometer is inserted into it. The measurement is facilitated but not falsified by the use of the sword sleeve. At the end of the measurement, the device is pulled out of the sleeve and this can be easily removed from the pile with the sword case extractor.
At the same time, the humimeter RH6 paper hygrometer also measures and displays the temperature of the material and includes it in the moisture calculation. The measuring range for this is -10 to +60 °C and can be displayed either in °C or °F.

The calibrated measuring range of the humimeter RH6 paper hygrometer ranges from 10% to 90% relative humidity, and this is directly related to the paper moisture when using the sword probe in the pile. Of course, the device for paper moisture can also be used to measure the humidity in a room .
Optionally, the humimeter RH6 paper hygrometer can output the current absolute humidity measured at the tip of the sword or the dew point temperature.

Included with the humimeter RH6 paper hygrometer is also a serial one Interface included for connecting the device to a PC. From the software provided “LogMemorizer” can read the values from the device, edit them, provide them with further additional information, archive them, export them and process them further.
