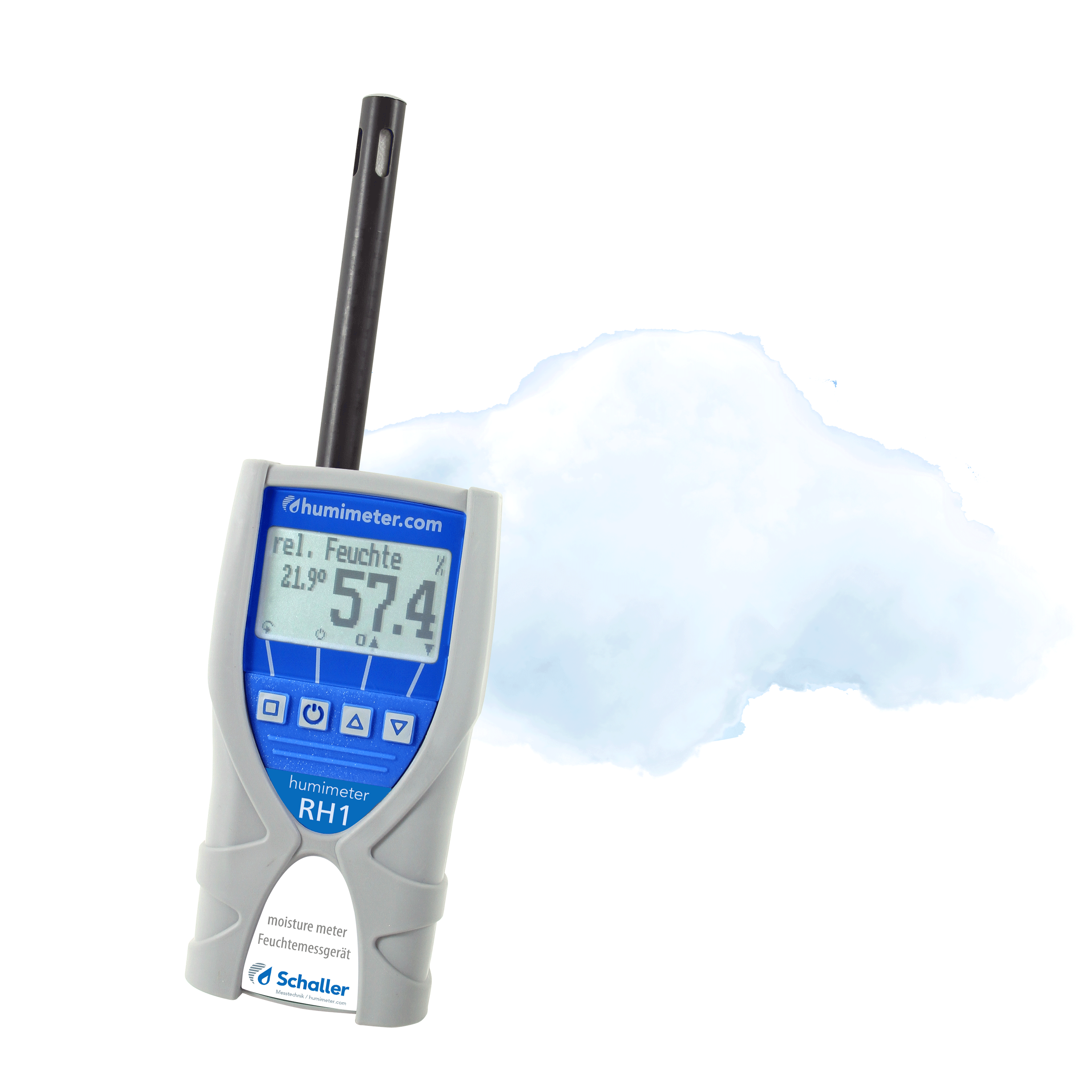

humimeter RH1 Climate humidity meter

with data logger
  • Very fast equalisation process
  • Long-term stable humidity and temperature sensors
  • Large selection of characteristic curves
  • Measured value memory for 10,000 measured values
  • Lifetime support
  • Scope of delivery: humimeter RH1 with rubber protection cover and batteries
Article number: 11487
$435.00 excl. taxes
Available
Accessories (optional)
excl. taxes
Description

The humimeter RH1 offers high-precision sensor technology, a large selection of characteristic curves, a data logger with optional USB interface & PC evaluation software combined in a hand-held measuring device.

The hygrometer is designed to measure the relative and absolute humidity as well as the dew point temperature of the surrounding air. By storing the device in wood or paper, the equilibrium humidity (Ugl.) or the water content in the material can also be determined. At the same time, the current temperature – either in °C or °F – is displayed for each measurement.

Scope of delivery: humimeter RH1 humidity meter, rubber protection, batteries, operating instructions

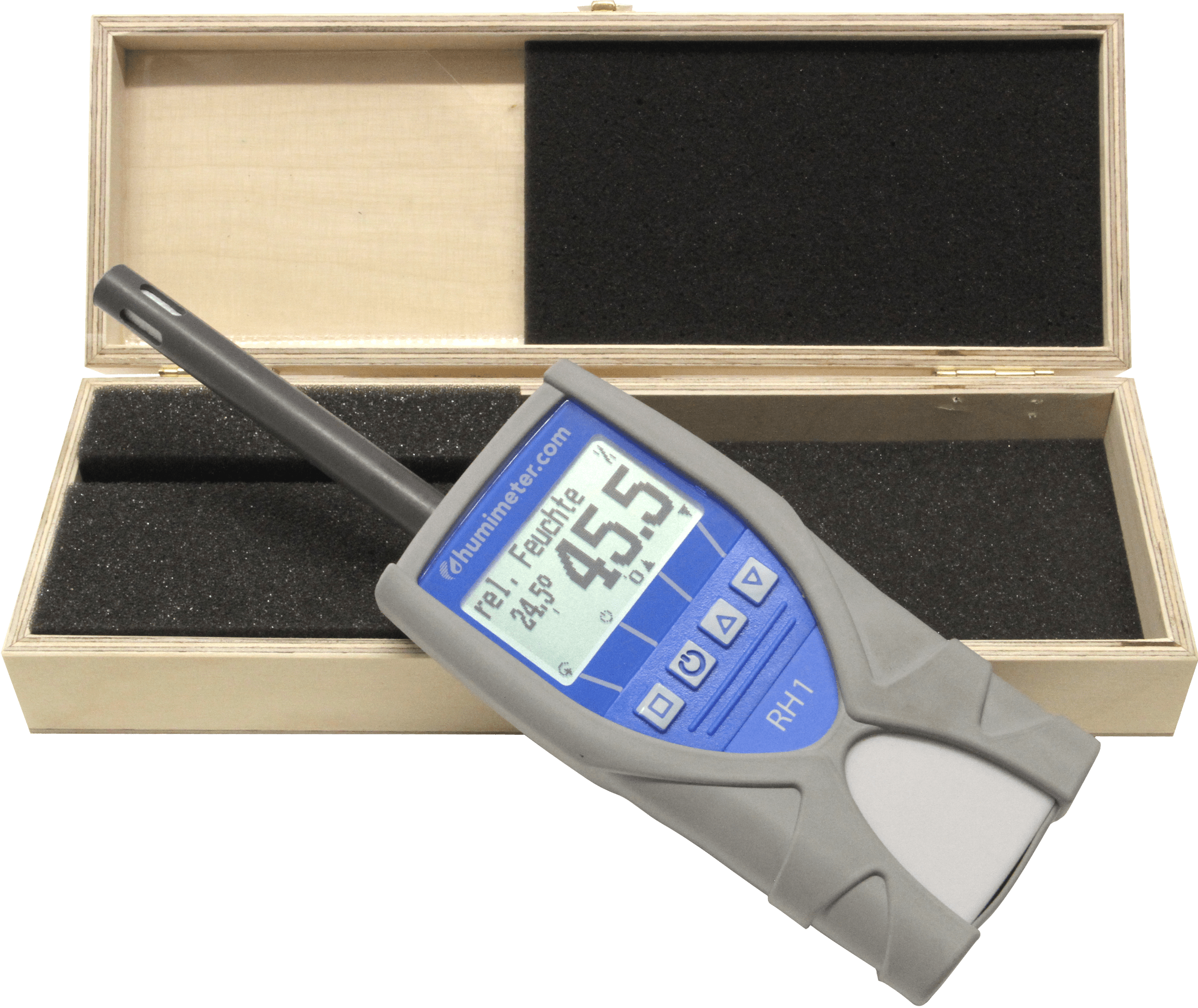

Optional: humimeter USB data interface module with LogMemorizer measurement data acquisition and evaluation software on USB stick including USB cable for PC, printer and wooden cassette

Advantages
  • Very fast equalisation process
  • Long-term stable humidity and temperature sensors
  • Easy data storage on the portable moisture meter
  • Optimal documentation of your quality
  • Menu language in English, German, French, Italian, Spanish, Russian, Portuguese, Czech, Polish and International
  • Lifetime support
Technical Data
Relative humidity 0 to 100%, resolution 0,1% RH
Calibration 10 to 90%, +/- 1.5% RH (at 25 °C | 77 °F)
Temperature -10 to 60 °C, resolution 0.1 °C | 14 to 140 °F, resolution 33.8 °F
Calibration +/- 0.3 °C (at 25 °C) | +/- 37.4 °F (at 77 °F)
Dew point -55 to +60 °C, resolution 0.1 °C | -67 to 140 °F, resolution 33.8 °F
Absolute humidity 0 to 130 g/m³, resolution 0.1 g/m³
Equilibrium moisture content wood EMC 2 to 30%, resolution 0.1%
Calibration 5 to 15%, accuracy +/- 0.5% (at 25 °C | 77 °F)
Memory function Hold function, manual value added storage
Automatic datalog Datalog for 10,000 values with measuring point report
Protection class IP40
Dimensions device 249 x 75 x 30 mm | 9.8 x 2.95 x 1.18 in

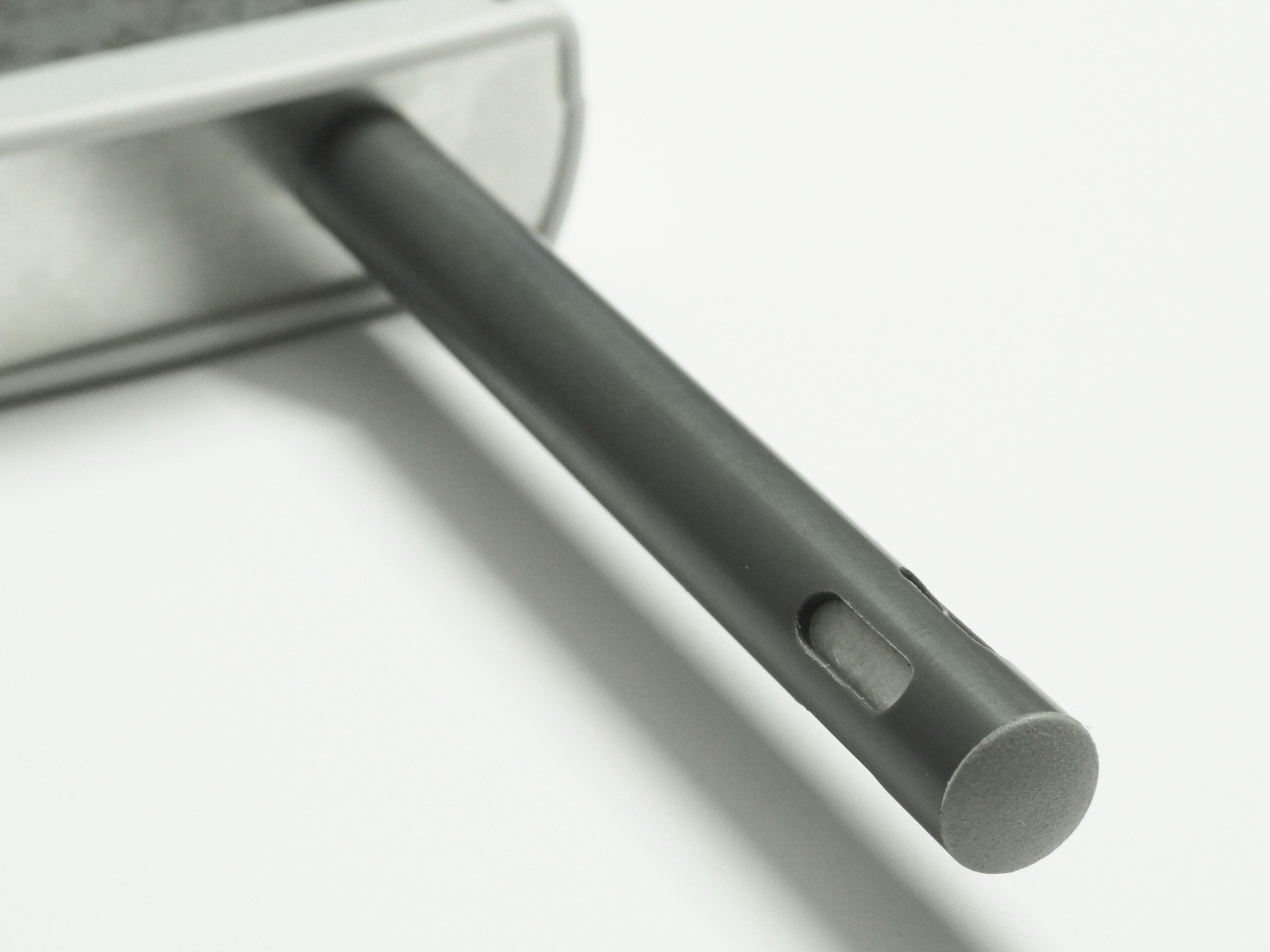

Dimensions sensor tube Ø12 x 102 mm | Ø0.47 x 4.02 in
Weight 270 g | 0.60 lbs (including batteries)
Power supply 4 x 1.5 Volt AA Alkaline batteries
Menu languages English, German, French, Italian, Spanish, Russian, Portuguese, Czech, Polish and International
Additional Notes
Stefanie Gsöls
Sales

Do you have any questions about our products? I would be happy to advise you personally!

Contact
Handling and measuring process

The humimeter RH1 The measuring device offers the option of saving current measured values ​​manually or having them saved automatically at certain intervals. The device can record up to 10,000 measured values, which can be provided with additional information such as the location of the measurement, batch number or supplier.

On request, the device is also available with a humimeter USB data interface module with LogMemorizer measurement data acquisition and evaluation software. With the help of this interface, the included data link cable and the included PC software “LogMemorizer”, you can transfer your saved measured values ​​to the PC, where they can be further processed, evaluated and saved.

If you choose an RH1 with interface, you can also print stored measurements directly from the instrument via a separately available printer without having to transfer the data to the PC first.
