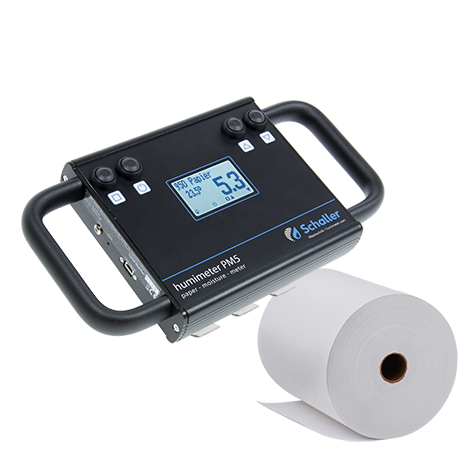

humimeter PM5 Paper moisture meter

View all corresponding accessories

Paper

for determining the absolute water content on the roll with a large measuring depth

50 mm measuring depth
Fast and highly accurate
Non-destructively
Hold function
Automatic datalog
Lifetime support
Scope of delivery: humimeter PM5, humimeter USB data interface module with LogMemorizer software incl. USB cable for PC, rechargeable battery, case with proof plate

Article number: 13800

$3,191.00 excl. taxes

Available

Accessories (optional)

Lab order for creation of a new calibration curve

$573.00 excl. taxes

Laboratory order to create characteristic curves for PM5

$1,380.00 excl. taxes

Factory calibration certificate material moisture

$152.00 excl. taxes

Description

For paper manufacturers, paper processors and paper dealers, for the non-destructive determination of the absolute moisture content of paper and cardboard on warm, running paper reels and on stationary, cool reels.
With non-contact infrared paper temperature measurement.
Non-destructive measurement through the packaging!

Paper moisture meter for determining the absolute water content on the paper roll with a high measuring depth

Infrared paperweb temperature measurement

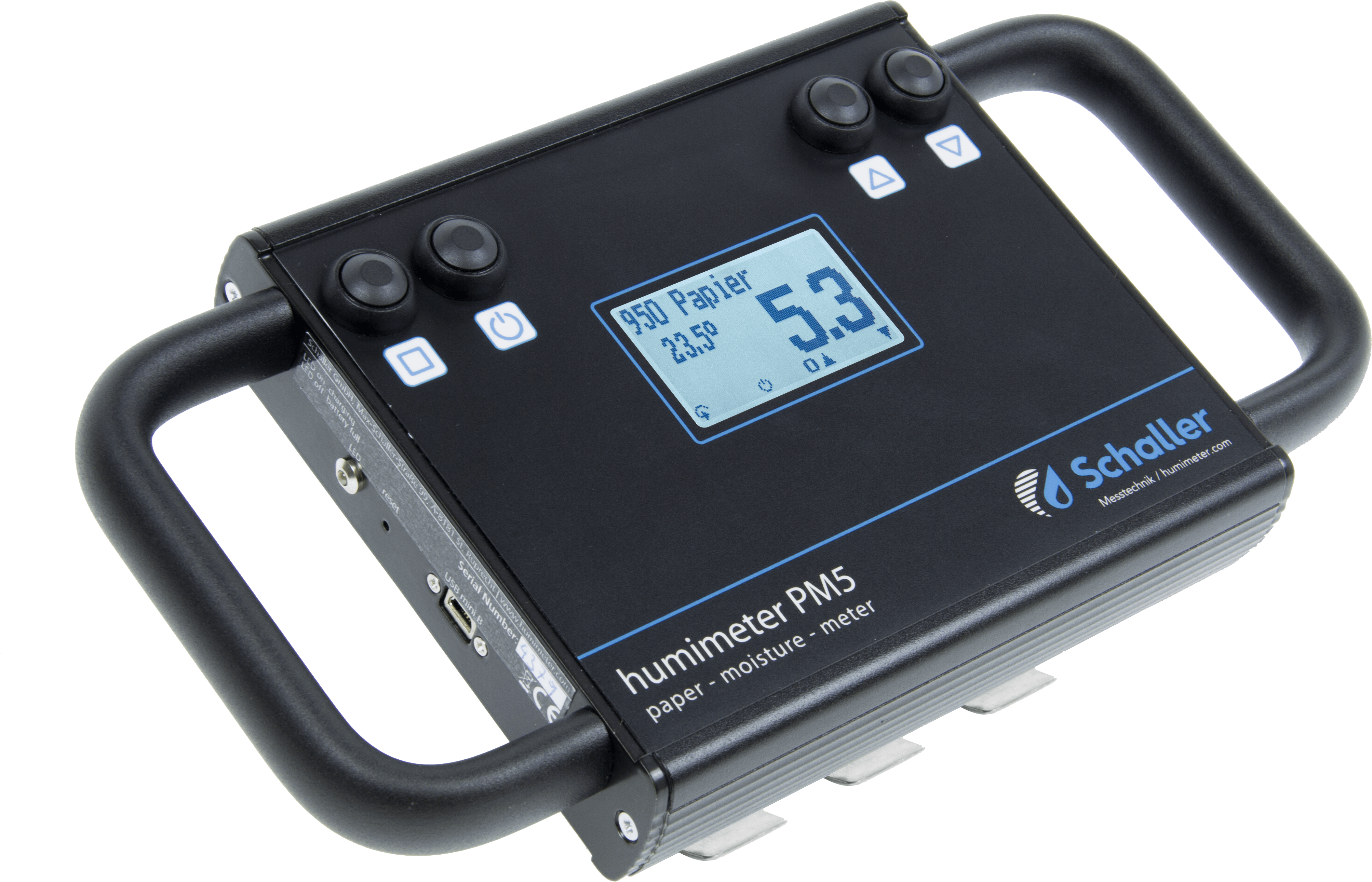

humimeter USB data interface module with LogMemorizer measurement data acquisition and evaluation software including USB cable for PC
the power is supplied by a rechargeable battery
Accurate determination of the paper roll temperature
Higher accuracy of the measurement results through temperature compensation based on infrared temperature measurement

The measuring device is adjusted after calibration to the reference method EN ISO 287.

Advantages

Quick and highly accurate measurement using a non-destructive method
Simple handling, small, handy, applicable anywhere on site
Menu languages: English, German, Italian, French, Spanish, Russian, Portuguese, Czech and Polish
Lifetime support

Technical Data

Measuring range	1 to 25 % water content
Resolution	0.1 % water content
Measuring depth	50 mm \| 1.97 mm
Temperature measurement	Contactless with 90° optics
Paper temperature for moisture measurement	0 to 80 °C \| 32 to 176 °F
Temperature measurement	-25 to +125 °C \| -13 to +257 °F
Temperature compensation	Automatically
Measurement result	Within seconds without sample preparation
Memory function	Hold function, datalog for 10,000 values with measuring point report
Dimensions	254 x 138 x 70 mm \| 10 x 5.43 x 2.76 in
Weight	850 g \| 1.87 lbs
Power supply	Li-Ion rechargeable battery
Menu languages	English, German, French, Italian, Spanish, Russian, Portuguese, Czech, Polish and International

Additional Notes

Markus Fabian

Sales

Do you have any questions about our products? I would be happy to advise you personally!

Contact

Handling and measuring process

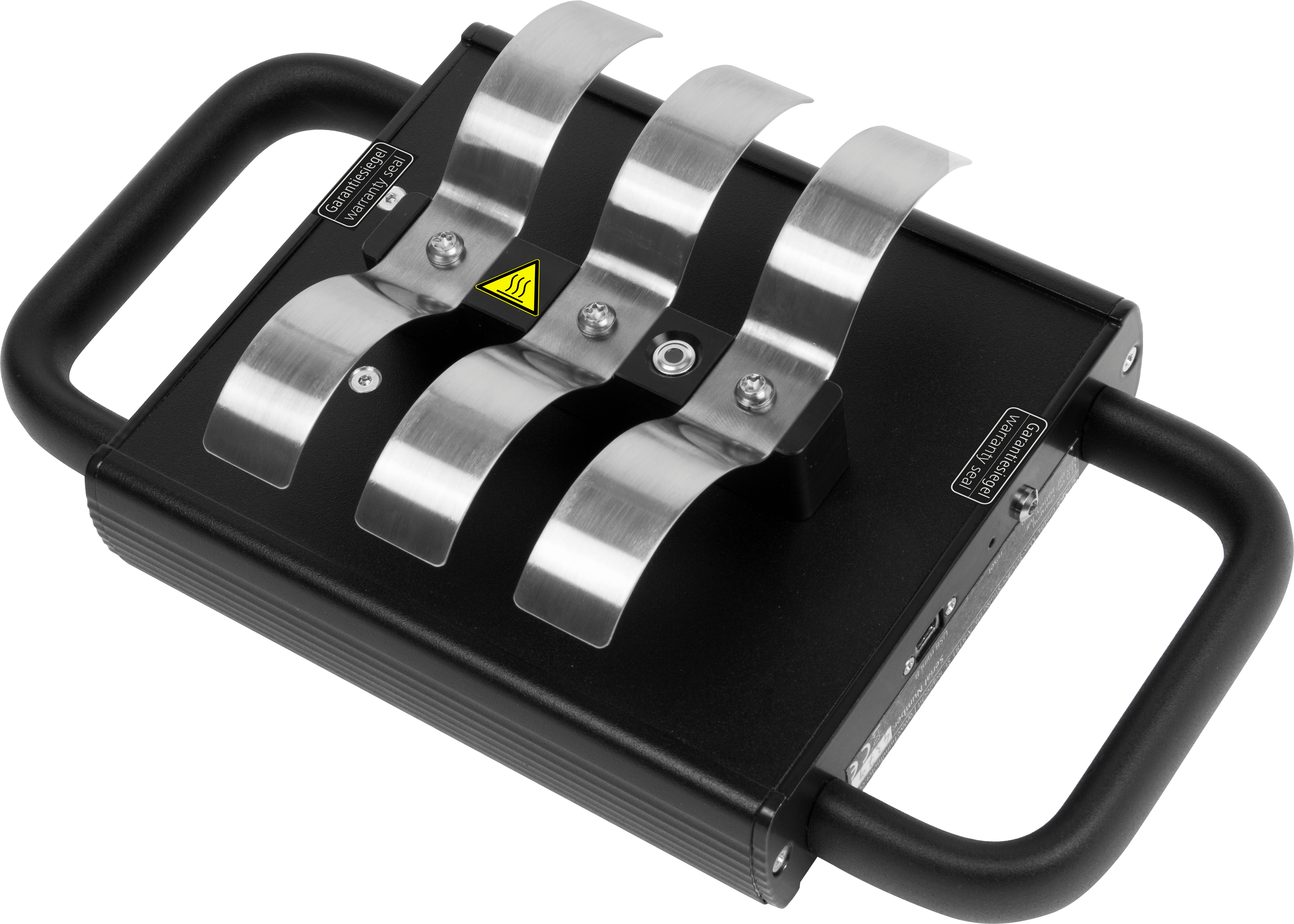

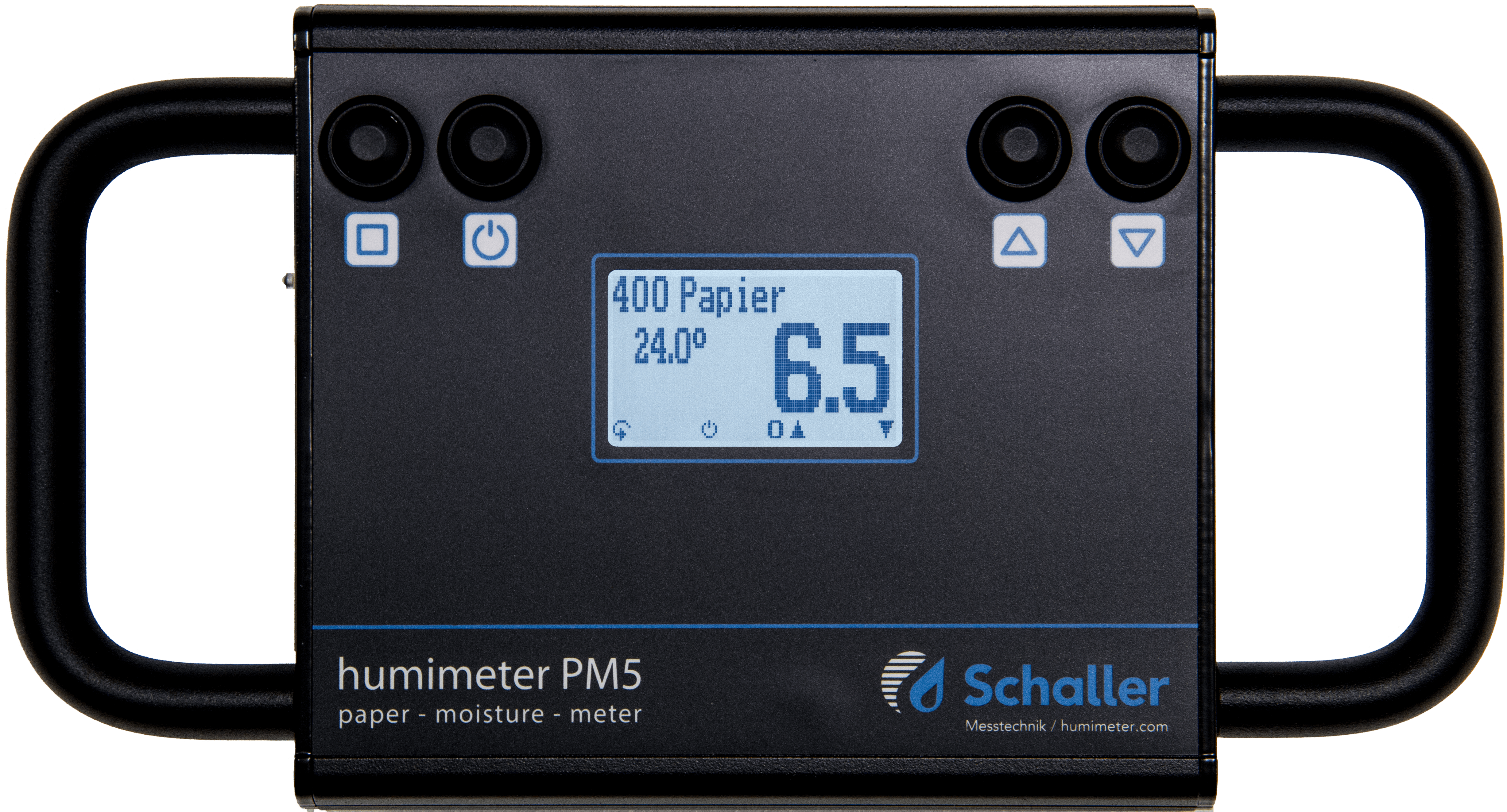

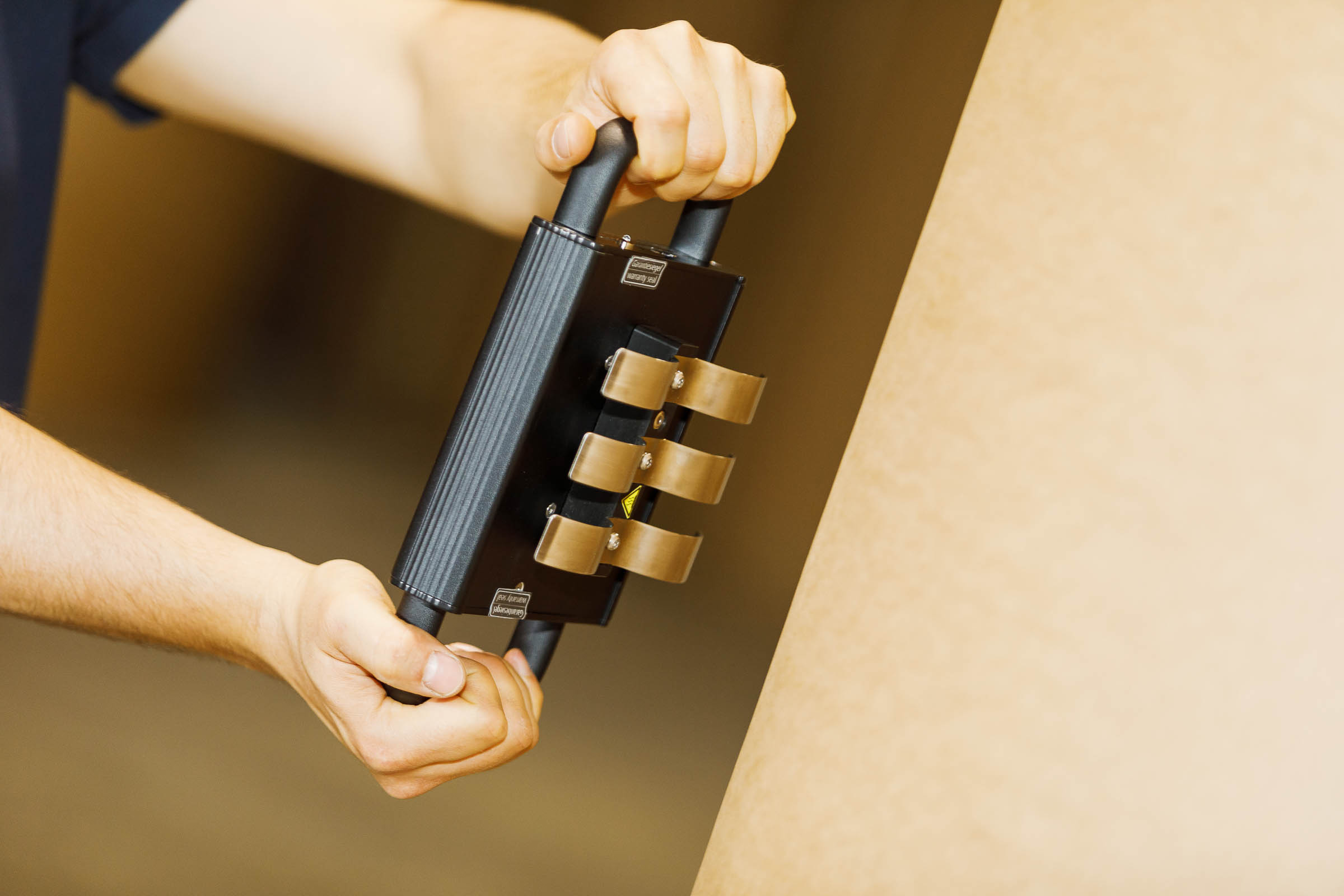

Turn on the device, select the correct calibration curve (depending on the paper density) and press the sensor bars of the device against the long side of the roll. The illuminated display immediately shows the measured value. For an average moisture reading or to identify overly wet or dry sections on the roll, simply move the device along the full length of the roll. The humimeter PM5 offers data storage for up to 10.000 readings and the option to enter additional data such as the batch number. The measured values can be transferred to a PC via the USB interface and the data can be archived, exported, processed or printed out using the LogMemorizer® PC software.
