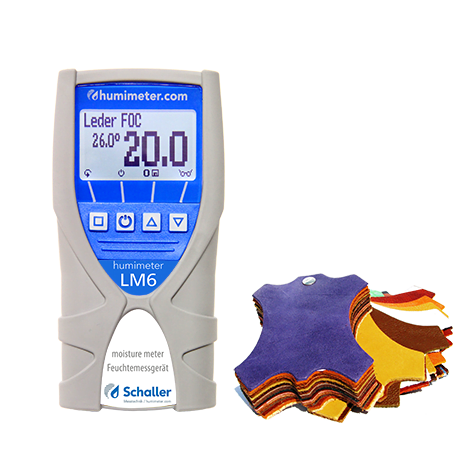

humimeter LM6 leather moisture meter

View all corresponding accessories

Material

Leather water content tester for all types of leather and degrees of moisture

Non-destructive leather moisture measurement within seconds
High accuracy due to temperature compensation
Quick determination of the average value
Lifetime support
Scope of delivery: humimeter LM6 with rubber protection cover, wooden case, proof plate and batteries

Article number: 12158

$1,181.00 excl. taxes

Available

Accessories (optional)

Factory calibration certificate material moisture

$152.00 excl. taxes

excl. taxes

Description

The LM6 leather moisture meter is a hand-held device for non-destructive determination of leather moisture. It helps to detect the water content in leather.

Areas of Application:
It is an excellent water content tester for the leather industry on all leather types and moisture levels – from wet blue to dry leather.

The measuring device is adjusted after calibration to the reference method EN ISO 4684.

Advantages

Non-destructive measurement
Mobility - the handheld meter is portable
Large measuring range 3 - 65 % water content
Measurement within seconds
High accuracy due to temperature compensation
Quick determination of the average value
Menu language in English, German, Italian, French, Spanish, Russian and many more on request

Technical Data

Measuring range	3 to 65 % water content
Resolution	0.1 % water content
Measuring depth	5 mm \| 0.197 in
Minimum material thickness	10 mm \| 0.394 in
Temperature range	0 to 40 °C \| 32 to 104 °F
Temperature compensation	Automatically
Measurement result	Within seconds without sample preparation
Compensation	Sample temperature measurement
Memory function	Hold function, datalog for 10,000 logs with measuring point report
Dimensions	147 x 75 x 30 mm \| 5.79 x 2.95 x 1.18 inc
Weight	265 g \| 0.58 lbs (including batteries)
Power Supply	4 x 1.5 Volt AA Alkaline batteries
Menu languages	English, German, French, Italian, Spanish, Russian, Portuguese, Czech, Polish and International

Additional Notes

Stefanie Gsöls

Sales

Do you have any questions about our products? I would be happy to advise you personally!

Contact

Handling and measuring process

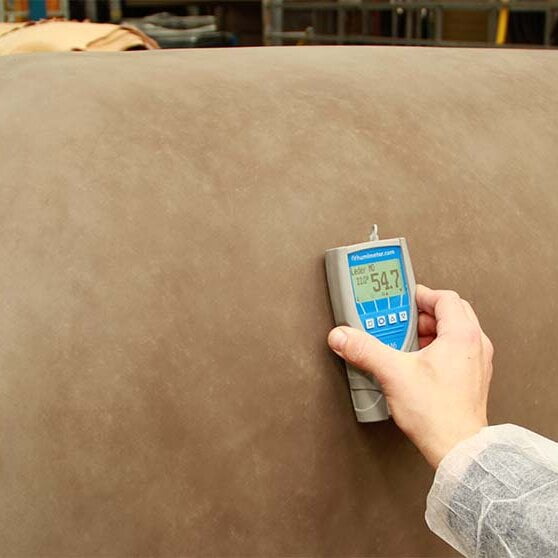

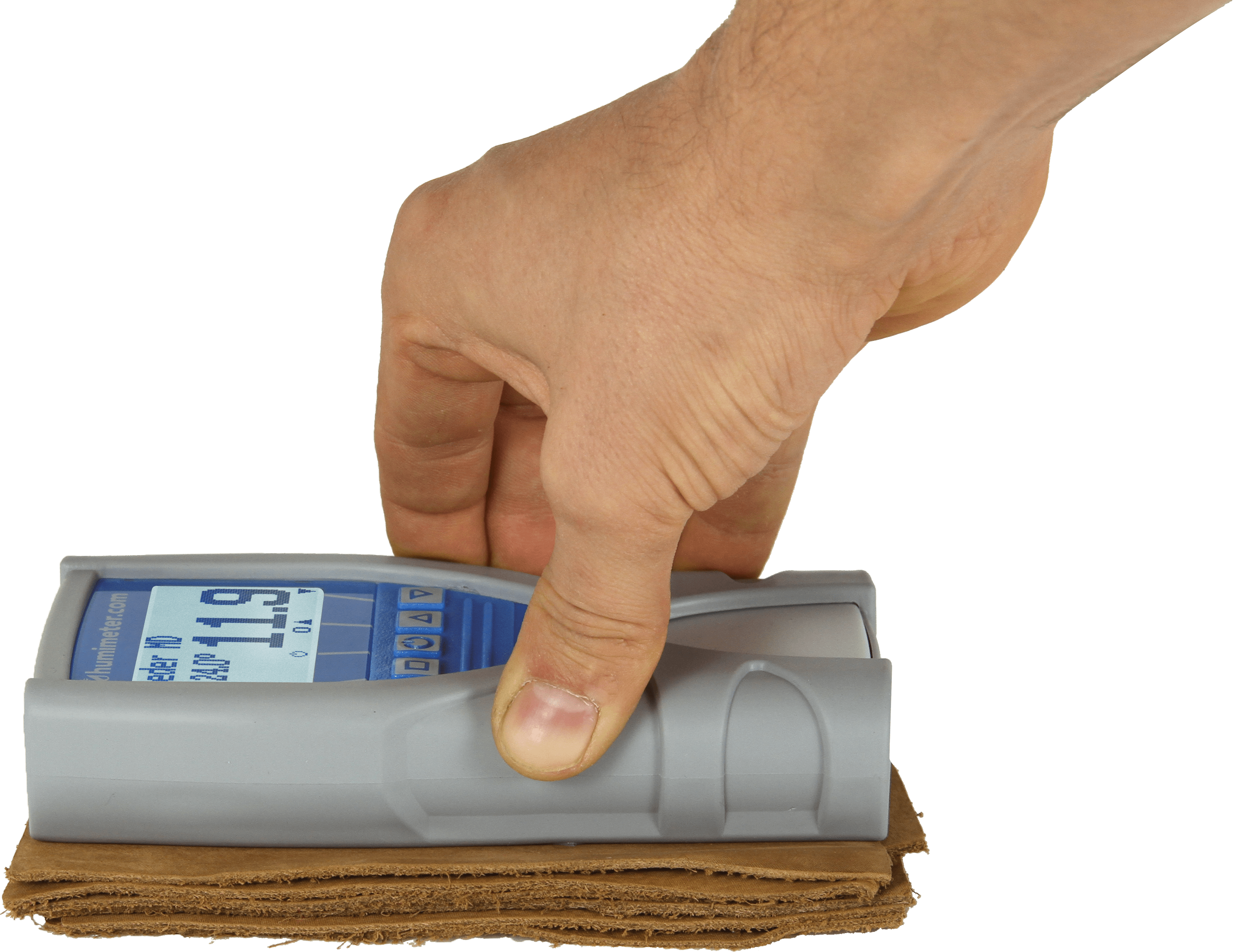

After selecting the right characteristic (depending on the density of the leather), the leather moisture meter humimeter Place LM6 on a stack of leather hides at least 10mm thick (e.g. on the buck) and press firmly. The absolute leather moisture and the temperature can be read immediately from the display. The leather is not damaged by the measuring process.

The average water content can be determined in a matter of seconds by taking several measurements at different points. Benefit from the non-destructive measurement method and optimize drying costs and maintenance times by detecting any moisture fluctuations or moisture spots in good time. The measured values can be saved on the device and supplemented with information such as batch numbers. With the optional USB interface, the measurement data can be transferred to a PC and archived, evaluated, exported or printed out using the LogMemorizer PC software.
